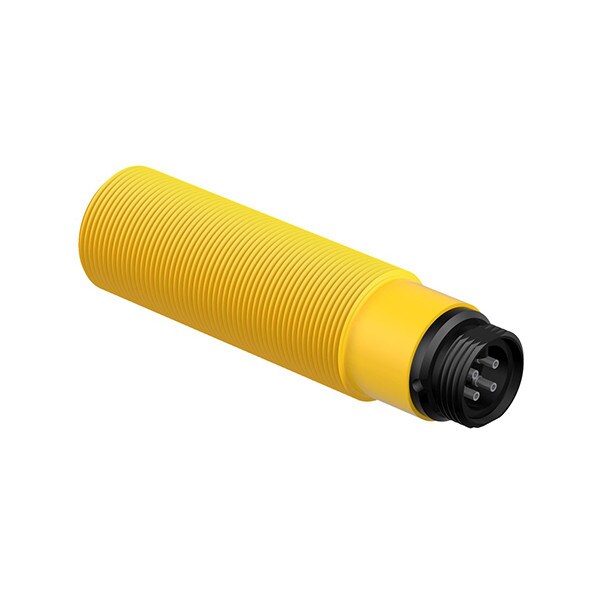

Banner Thermoplastic 30 MM Threaded Barrel Sensor for S30 Series

Banner Thermoplastic 30 MM Threaded Barrel Sensor for S30 Series

Brand: Banner

Housing Material: Thermoplastic

Connection Type: Integral QD

QD Type: M12 (euro)

Sensing Mode: Emitter

Min Operating Temperature: -40ºC

Max Operating Temperature: 70ºC

Sensing Range: 60000 mm

Supply Voltage: 10-30V dc

Max Operating Relative Humidity: 90% at 50ºC

Lens Material: Acrylic

Barrel Diameter: 30 mm

Output Response Time: 3 ms On/ 1.5 ms Off

Number of Pins: 4

Sensing Beam: Infrared LED

IP Rating: IP67

Indicator: LEDs

Housing Style: Barrel
