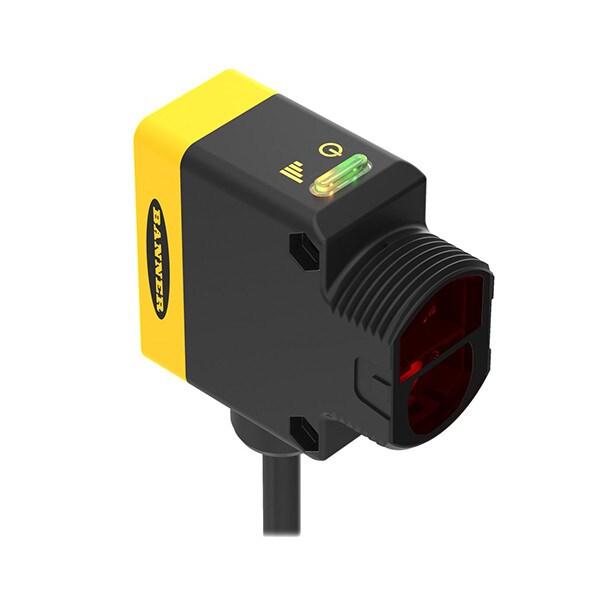

Banner Thermoplastic High Performance Long Range Receiver Sensor for QS30 Series

Banner Thermoplastic High Performance Long Range Receiver Sensor for QS30 Series

Brand: Banner

Housing Material: Thermoplastic

Connection Type: Cable

Cable Length: 2 m

Sensing Mode: Receiver

Min Operating Temperature: -20ºC

Max Operating Temperature: 70ºC

Sensing Range: 60000 mm

Supply Voltage: 12-250V dc or 24-250V ac

Max Operating Relative Humidity: 95% at 50ºC

Lens Material: Acrylic

Barrel Diameter: 30 mm

Output Response Time: 15 ms

Number of Pins: 5

Sensing Beam: Infrared LED

IP Rating: IP67

Indicator: LEDs

Housing Style: M30 Mount

Delay at Power-Up: 100 ms

Operation: Light/ Dark Operate

Input/ Output: E/M Relay
