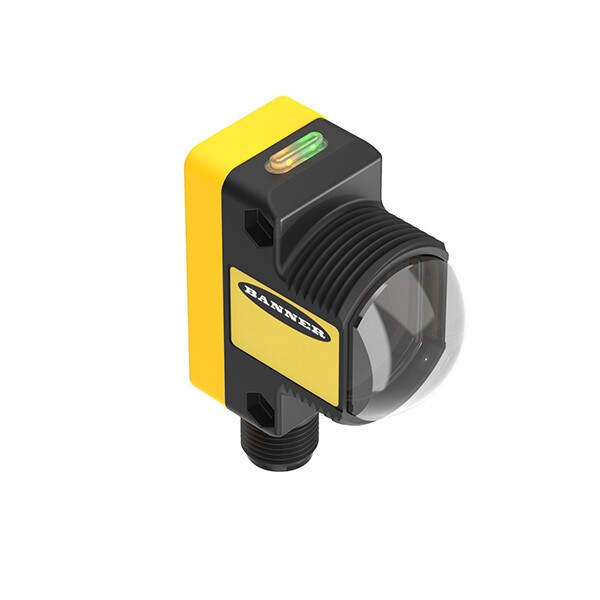

Banner Thermoplastic High Performance Long Range QD Internal Sensor for QS30 Series

Details

Brand: Banner

Housing Material: Thermoplastic

Connection Type: QD Integral

Sensing Mode: Receiver

Min Operating Temperature: -20ºC

Max Operating Temperature: 70ºC

Sensing Range: 213 m

Supply Voltage: 10-30V dc

Max Operating Relative Humidity: 95% at 50ºC

Lens Material: Zeonex

Barrel Diameter: 30 mm

Output Response Time: 5 ms

Number of Pins: 5

Sensing Beam: Infrared LED

IP Rating: IP69

Input/ Output: Discrete

Indicator: Bar graph

Output: NPN/PNP

Housing Style: M30 Mount
