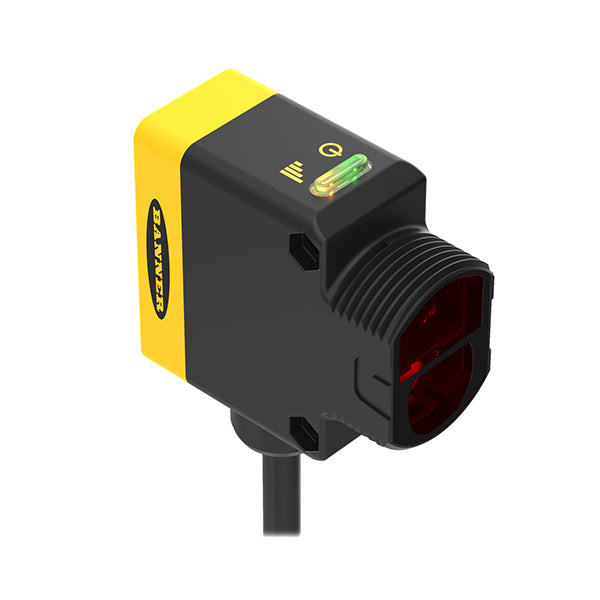

Banner Thermoplastic High Performance Long Range Receiver Sensor for QS30 Series
Product Information
Banner Thermoplastic High Performance Long Range Receiver Sensor for QS30 Series is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Warning: This product can expose you to chemicals known to cause cancer and birth defects. More info
Banner Thermoplastic High Performance Long Range Receiver Sensor fo...
Description
Description
Banner Thermoplastic High Performance Long Range Receiver Sensor for QS30 Series
Brand: Banner
Housing Material: Thermoplastic
Connection Type: Cable
Cable Length: 2 m
Sensing Mode: Receiver
Min Operating Temperature: -20ºC
Max Operating Temperature: 70ºC
Sensing Range: 60000 mm
Supply Voltage: 12-250V dc or 24-250V ac
Max Operating Relative Humidity: 95% at 50ºCLens Material: Acrylic
Barrel Diameter: 30 mm
Output Response Time: 15 ms
Number of Pins: 5
Sensing Beam: Infrared LED
IP Rating: IP67
Indicator: LEDs
Housing Style: M30 Mount
Delay at Power-Up: 100 ms
Operation: Light/ Dark Operate
Input/ Output: E/M Relay
