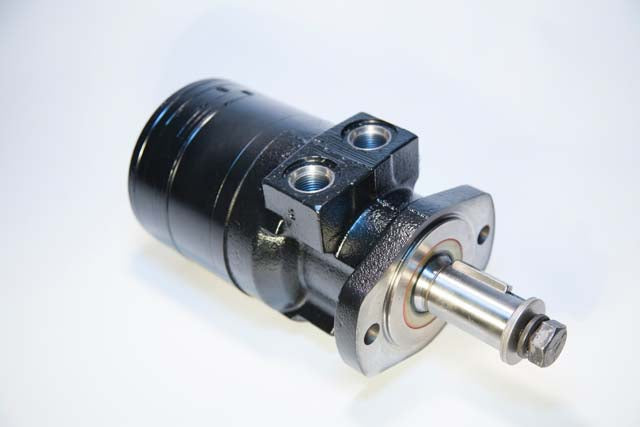

Coleman Hanna Hydraulic Motor for the Flex Wrap Brush (Tall)
Product Information
Coleman Hanna Hydraulic Motor for the Flex Wrap Brush (Tall) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Warning: This product can expose you to chemicals known to cause cancer and birth defects. More info
Coleman Hanna Hydraulic Motor for the Flex Wrap Brush (Tall)
Description
Description
Coleman Hanna Hydraulic Motor for the Flex Wrap Brush (Tall).
Brand: Coleman Hanna
Shaft: 1" Keyed
Max. Speed: 328 rpm
Rotation: Standard
Max. Differential Pressure (continuous / intermittent): 120 bar (1740 PSID) / 165 bar (2400 PSID)
Ports: ½-14 NPTF
Geometric Displacement: 228 cm3/rev (13.9 in3/rev)
Maximum Torque - Continuous / Intermittent: 380 Nm (3363 lb in) / 514 Nm (4554 lb in)
Displacement: (cm3/rev): 230
Max. Supply Pressure: 200 bar (2900 PSID)
Max. Performance: 17.7 KW (23.8 HP)
Min. Starting Torque - Continuous / Intermittent: 304 Nm (2691 lb in) / 411 Nm ( 36337 lb in)
Max. Oil Flow - Continuous / Intermittent: 57 lpm (15 gpm) / 75 lpm (20 gpm)
Maximum Side Load at Key: 6650 N (1500 lb)
Mounting: 4 Bolt with 3/8-16 UNC
