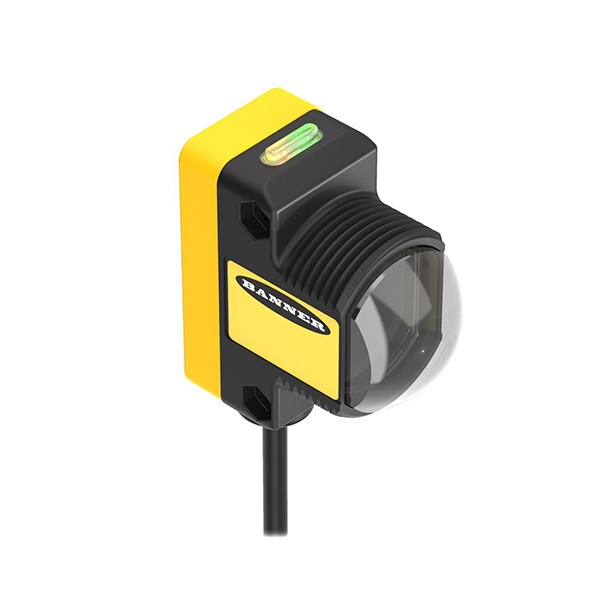

Banner Thermoplastic High Performance Long Range Emitter Sensor for QS30 Series

Details

Brand: Banner

Housing Material: Thermoplastic

Connection Type: Cable

Cable Length: 2 m

Sensing Mode: Emitter

Min Operating Temperature: -20ºC

Max Operating Temperature: 60ºC

Sensing Range: 213 m

Supply Voltage: 10-30V dc

Max Operating Relative Humidity: 95% at 50ºC

Lens Material: Zeonex

Barrel Diameter: 30 mm

Output Response Time: 30 ms

Number of Pins: 4

Sensing Beam: Infrared LED

IP Rating: IP67

Input/ Output: Discrete

Indicator: LEDs

Housing Style: M30 Mount
