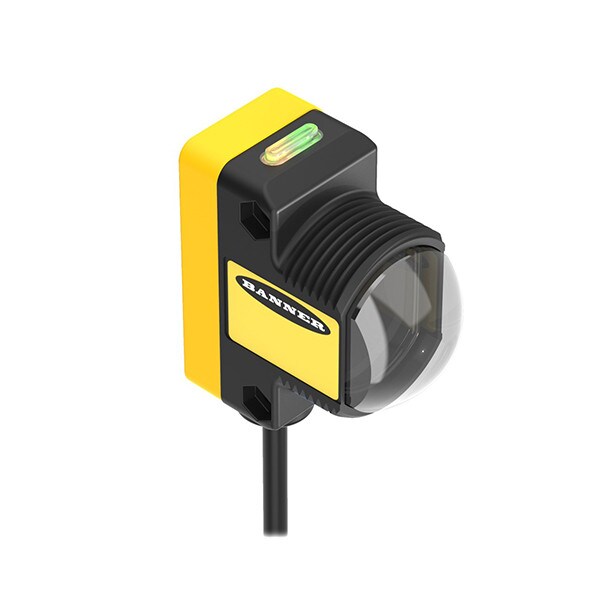

Banner Thermoplastic High Performance Long Range Pigtail QD M12 Sensor for QS30 Series

Banner Thermoplastic High Performance Long Range Pigtail QD M12 Sensor for QS30 Series

Brand: Banner

Housing Material: Thermoplastic

Connection Type: Pigtail QD

QD Type: M12 (euro)

Cable Length: .15 m

Sensing Mode: Emitter

Min Operating Temperature: -20ºC

Max Operating Temperature: 60ºC

Sensing Range: 213 m

Supply Voltage: 10-30V dc

Max Operating Relative Humidity: 95% at 50ºC

Lens Material: Zeonex

Barrel Diameter: 30 mm

Output Response Time: 30 ms

Number of Pins: 5

Sensing Beam: Infrared LED

IP Rating: IP67

Indicator: LEDs

Housing Style: M30 Mount
