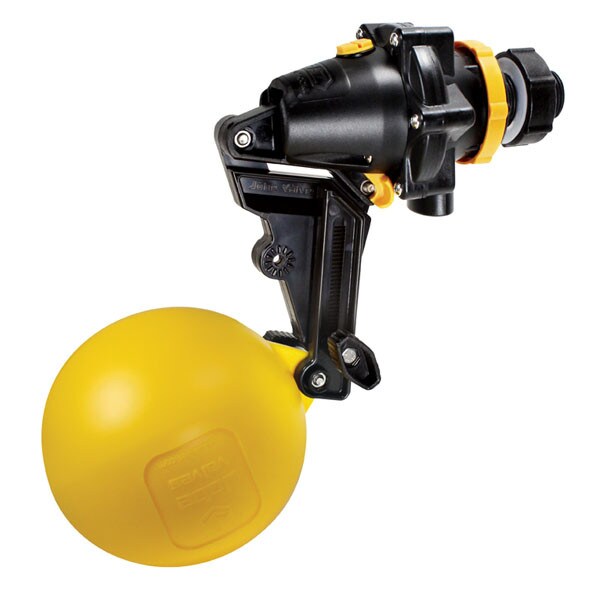

Jobe Topaz 1'' Compact Float Valve with Short Tail

Jobe Topaz 1'' Compact Float Valve with Short Tail

Brand: Jobe

Inlet Port: 1'' NPT

Flow Rate: 90 GPM

Maximum Working Temperature: 140° F

Pressure Range: 5-100 PSI

Mount: Vertically or Horizontally

Topaz Compact float valves are float operated valves for use in the automatic filling of water troughs, tanks & cisterns where space is limited. The valve is configured for above-water mounting only. The compact weighted float operates a small pilot valve which in turn operates the main diaphragm valve. Topaz Compact float valves are positive on/off and are ideal when working with pump-supplied water in a small compartment.
