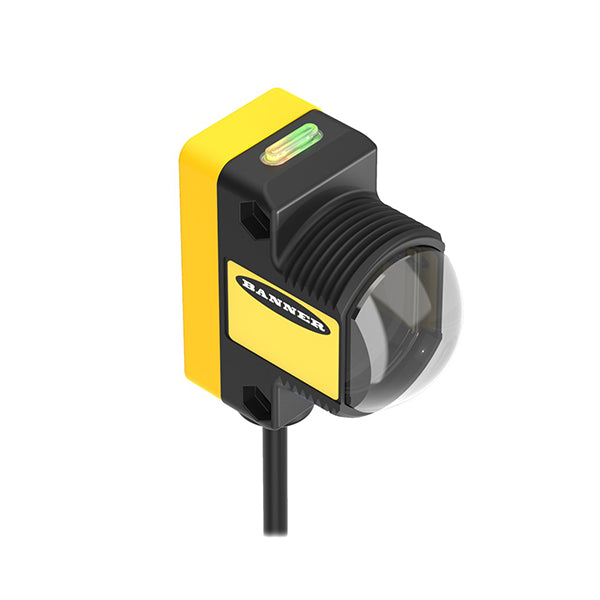

Banner Thermoplastic High Power Receiver for QS30 Series
Product Information
Banner Thermoplastic High Power Receiver for QS30 Series is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Warning: This product can expose you to chemicals known to cause cancer and birth defects. More info
Banner Thermoplastic High Power Receiver for QS30 Series
Description
Description
Banner Thermoplastic High Power Receiver for QS30 Series
Brand: Banner
Housing Material: Thermoplastic
Connection Type: Cable
Cable Length: 6' Ft
Sensing Mode: Receiver
Min Operating Temperature: -20ºC
Max Operating Temperature: 70ºC
Sensing Range: 213 m
Supply Voltage: 10-30V dc
Max Operating Relative Humidity: 95% at 50ºCLens Material: Zeonex
Barrel Diameter: 30 mm
Output Response Time: 5 ms
Delay at Power-Up: 100 ms
Number of Pins: 5
Sensing Beam: Infrared LED
IP Rating: IP67
Input/ Output: Discrete
Indicator: Bar graph
Output: NPN/PNP
